The Video Signal Repeater (VSR3) is designed to lengthen the video transmission of Tactical Electronics camera systems to over one kilometer (LOS). The VSR3 system receives RF signals from Tactical Electronics camera systems, strengthens the video signals, and retransmits them to an observation point or command post. By enhancing and intensifying an RF video signal operators increase transmission distance while also allowing transmission around RF obstacles.

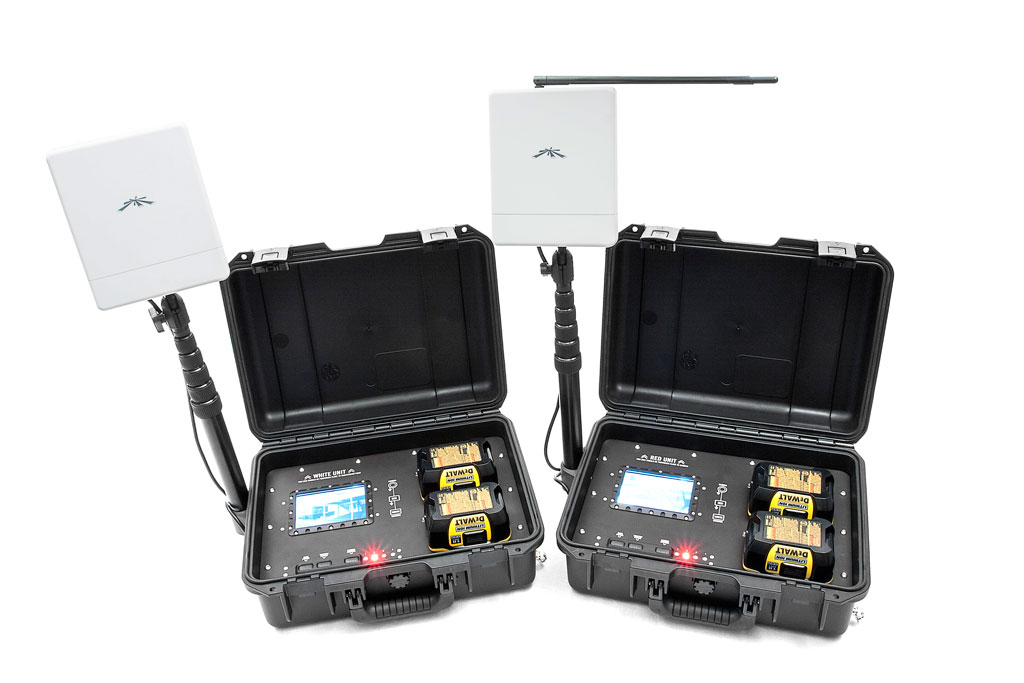

IN THIS KIT
Video Signal Repeater (RED and WHITE UNIT)
RED UNIT
- One: Storm Case® with 5in LCD screen
- Two: 18V DeWalt batteries
- One: 12V vehicle power cable
- One: 5ft. telescoping antenna pole
- One: 900 MHz transceiver unit
- One: 2.4 GHz omni directional antenna
WHITE UNIT
- One: Storm Case® with 5in LCD screen
- Two: 18V DeWalt batteries
- One: 12V vehicle power cable
- One: 5ft. telescoping antenna pole
- One: 900 MHz transceiver unit
- One: 900 MHz antenna
FEATURES
- Rugged Storm Case® with 5in LCD screen
- Telescoping antenna pole
- Lengthens video transmission to over one kilometer (LOS)
- Transmits video from Tactical Electronics camera systems
- View video via receiving case LCD monitor
- Video out: external BNC video port
- Remotely toggle between camera systems
- 256-bit AES encrypted video transmission
- Rechargable 18V batteries
- External 12V DC power port
